Debugging

LibOSDP has extensive debugging and diagnostics built in to help narrow down issues without requiring a back-and-forth exchange. The default logging level is sane for everyday operation — don't generate verbose logs proactively unless you're actively investigating a problem.

A Note on Log Files ​

When reporting an issue, attach the full log from osdp_cp_setup() to the point of failure. Even if you think you know the cause, retain the very first few log lines — they contain the LibOSDP version and PD connection topology.

When creating a GitHub issue, attach the log file or post it on a paste service such as pastebin.com and include the link.

Log Level ​

LibOSDP supports different logging levels, with LOG_DEBUG being the most verbose. When asking for help, set the log level to LOG_DEBUG.

Call osdp_logger_init()beforeosdp_cp/pd_setup():

osdp_logger_init("osdp::cp", LOG_DEBUG, uart_puts);

Any log messages other than DEBUG and INFO should be treated as out-of-ordinary events requiring attention.

Packet Trace Builds ​

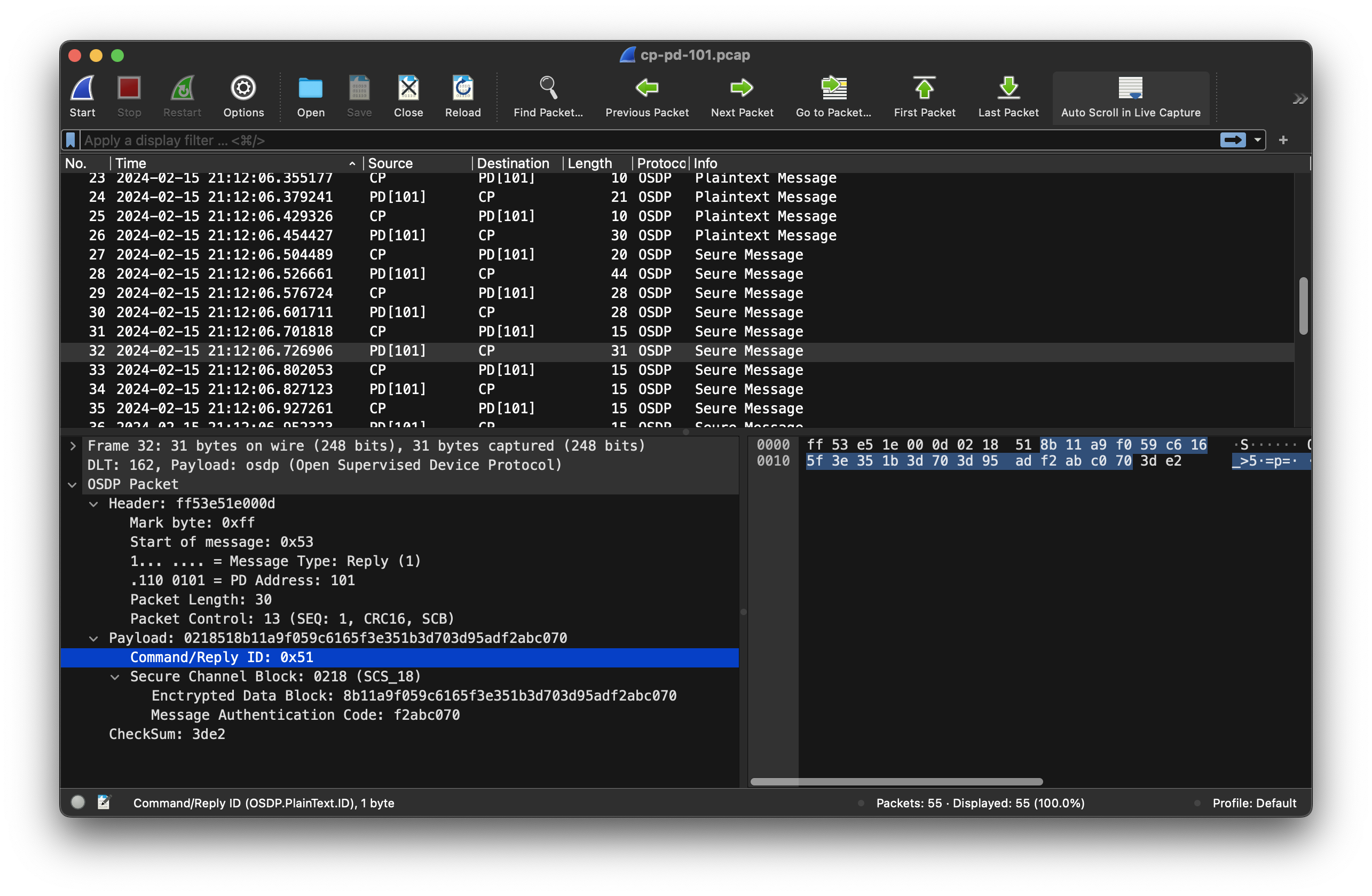

The most verbose debugging mode: all bytes on the wire are captured and saved to a standard .pcap file that can be inspected in any packet analyzer. Useful for low-level protocol issues.

To enable packet trace:

mkdir build-pt && cd build-pt
cmake -DOPT_OSDP_PACKET_TRACE=on ..
make

During CP/PD setup, set the PD info flag OSDP_FLAG_CAPTURE_PACKETS. When your application runs, LibOSDP will produce a .pcap file in the current directory containing all decoded packets.

Data Trace Builds ​

When secure channel is working but you're seeing a command-level failure, data trace dumps the decrypted messages instead of the encrypted wire data.

To enable data trace:

mkdir build-dt && cd build-dt
cmake -DOPT_OSDP_DATA_TRACE=on ..
make

During CP/PD setup, set the PD info flag OSDP_FLAG_CAPTURE_PACKETS. LibOSDP will produce a .pcap file with decrypted packet content.

Note: Running both packet trace and data trace simultaneously is seldom useful and makes it harder to locate relevant information.

The packet and data trace builds above capture traffic from inside your own LibOSDP application, which is ideal during development. For production troubleshooting — where you want to watch and decode live OSDP traffic on the bus without rebuilding or instrumenting the device under test — the team recommends capturing on the wire with dedicated hardware:

  • Osprio Mini taps the RS-485 bus passively as a capture probe; it never injects frames, so it is safe to leave on a production bus.
  • Capture Workspace in Osprio View pairs with Osprio Mini as a graphical OSDP protocol analyzer — live packet capture, structured command/reply decode, secure-channel inspection, and offline replay.

This is the capture workflow we recommend for production users: it decodes OSDP without any protocol-analyzer plugin setup and never touches the firmware of the device you are debugging.
